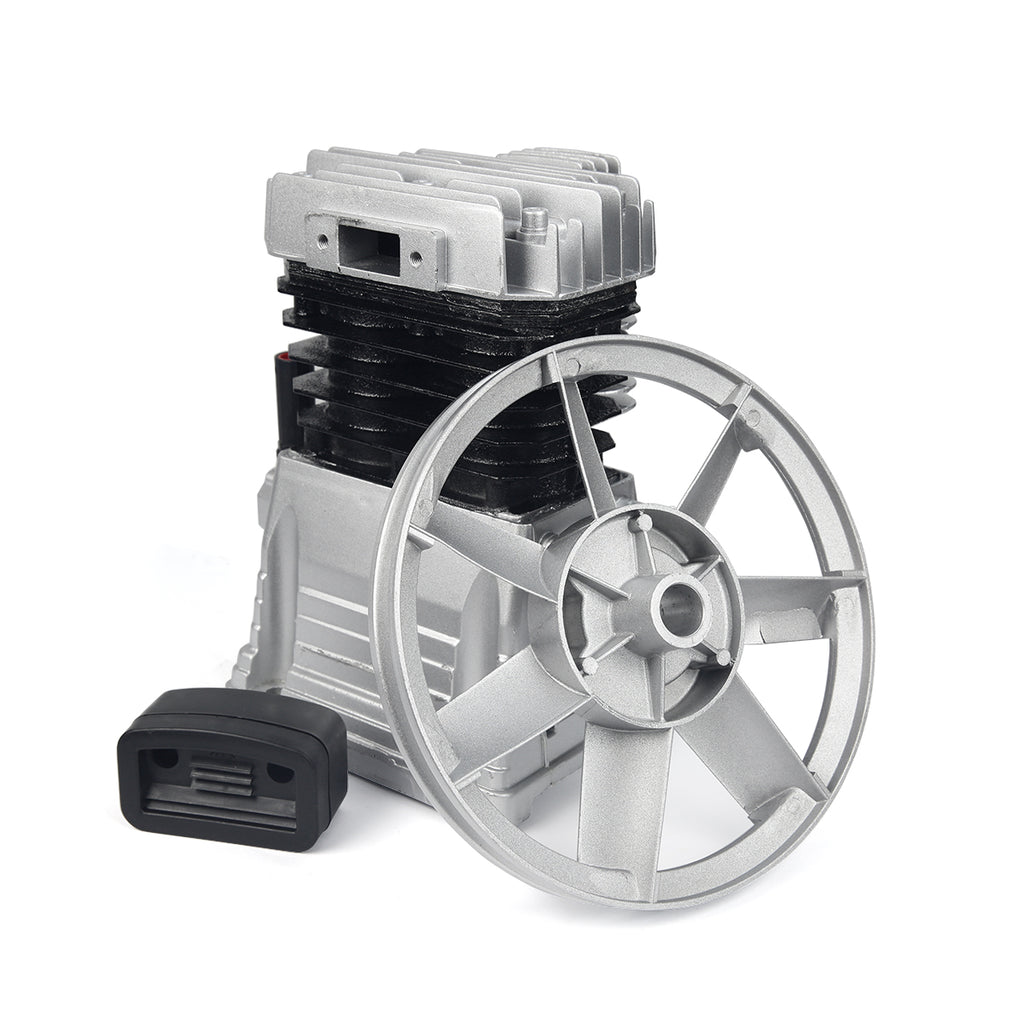

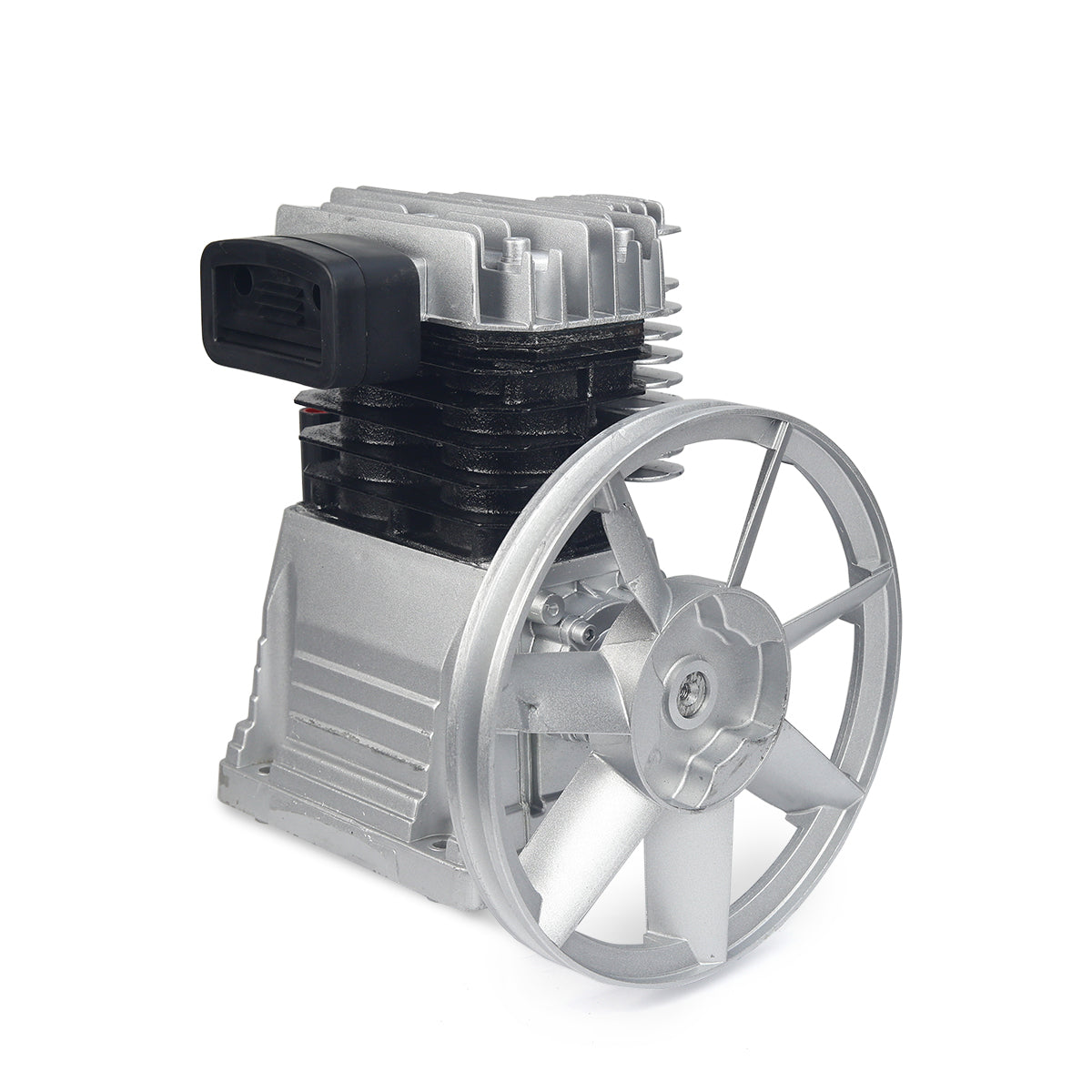

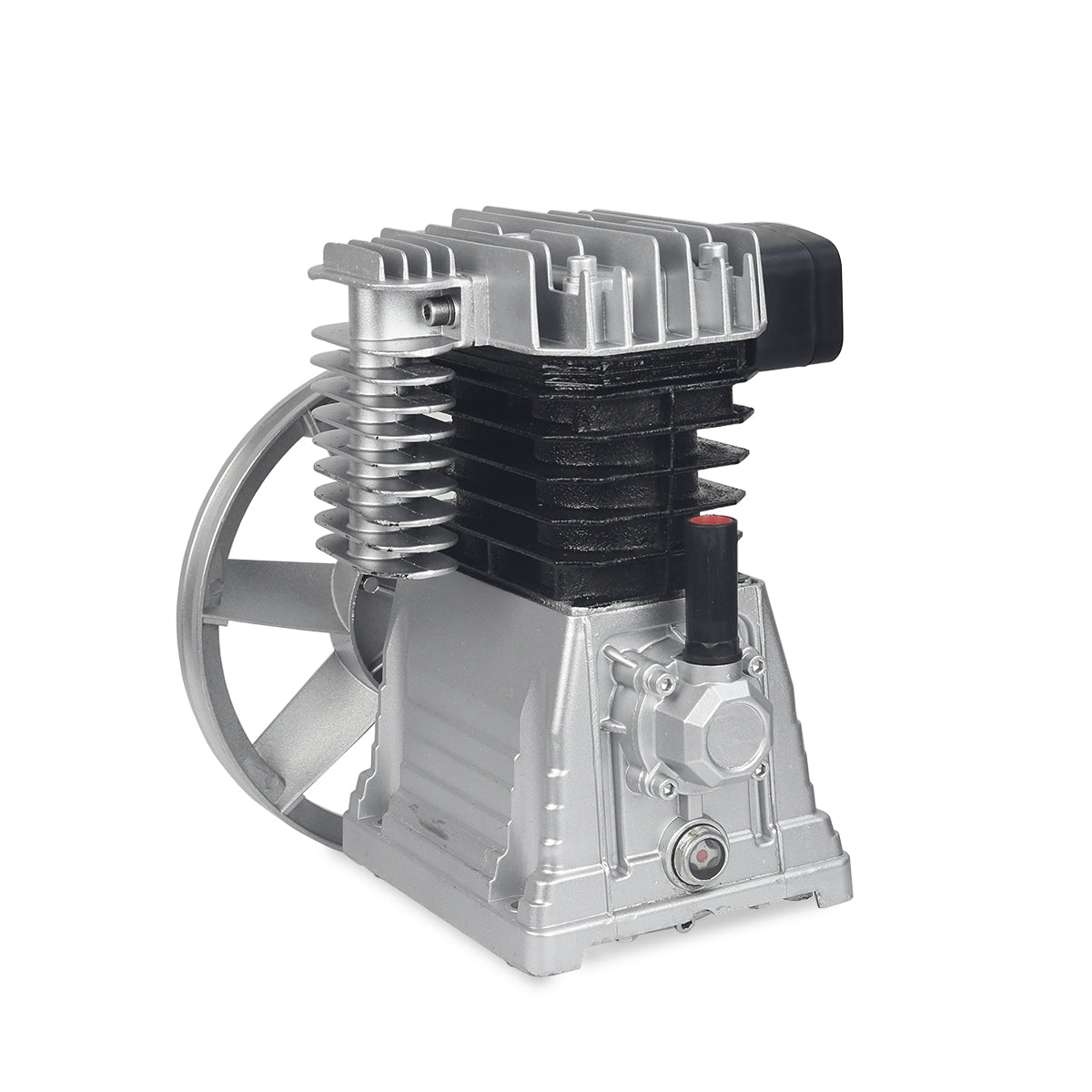

The oil-lubricated cast iron cylinder pumps are designed for long life and 100% duty cycle operation. Aluminum pump head allows for superior heat dissipation. Features a balanced flywheel for use with single-groove belts, a canister-type air cleaner and oil sight glasses.
Feature:
- Air compressor pump is widely used for chemical industry, light industry, textile, food processing, health, electronics, machinery, mining, construction, scientific research and other requirements of high-quality compressed air sector
- The air compressor head motor with proven belt driven design is greatly for excellent compression and smooth running
- Twin cylinder air compressor pump has a cast iron crankcase and aluminum head and valve plate to dissipate heat
- Observing the oil viewing window, it can monitor the oil capacity inside the machine in real time, and control the amount of oil when you adding the air compressor oil
Specifications:
- Color: Silver
- Material: Cast-Iron
- Stage: Single
- Horsepower: 3
- Max PSI: 145
- Flow Rate: 11.5 cfm / 145psi

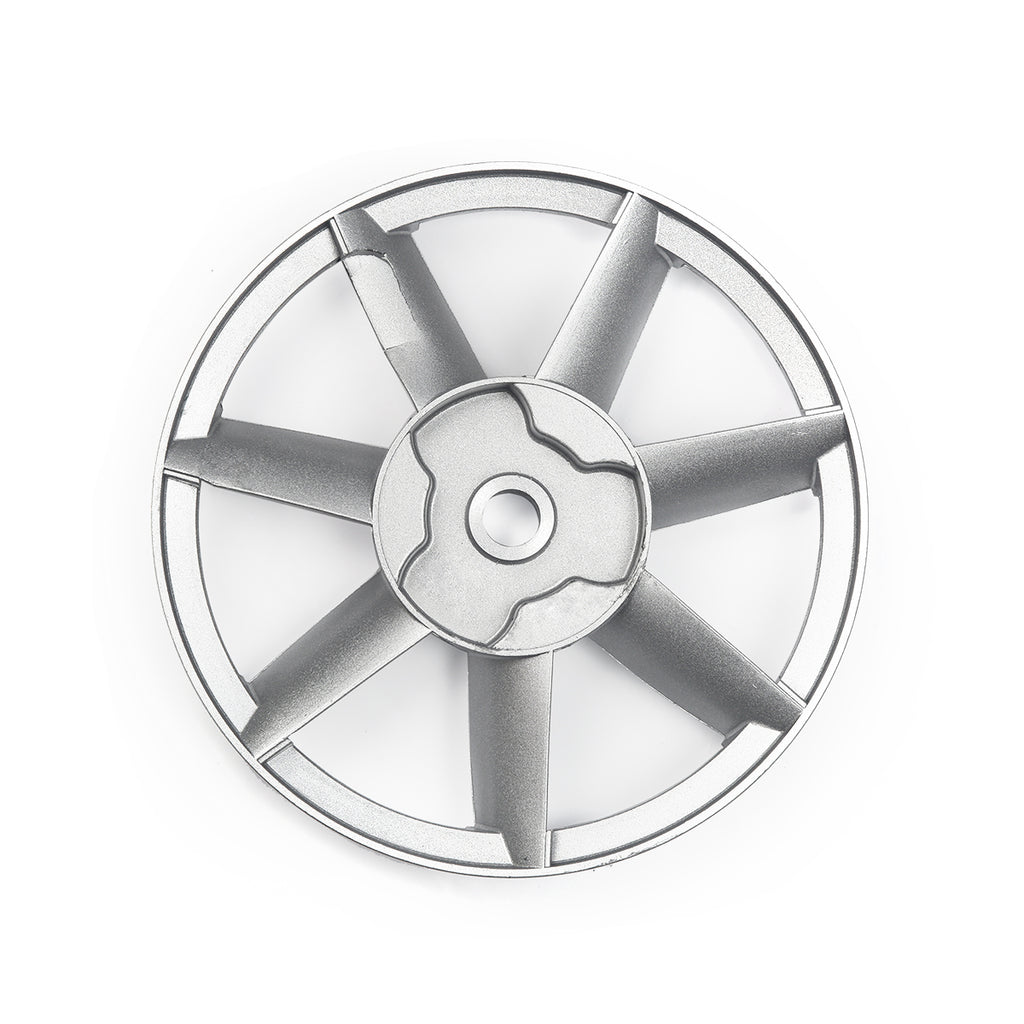

- Flywheel: 11" with Dual V-Grove
- Oil Sight Glass: Yes
- Pump Drive: Belt Drive
- Oil Type: Oil Lubricated
Package Content:
- Air Compressor Pump
Customer Reviews
Based on 3 reviews
67%
(2)
33%
(1)
0%
(0)
0%
(0)
0%
(0)
G
Fill with oil, mount, adjust belt tension and go.I mounted it on 1/2" nylon sheets for easy adaption to previous mounting holes.Many pressure cycles.to date.I'm quite pleased with it.
G
Fill with oil, mount, adjust belt tension and go.I mounted it on 1/2" nylon sheets for easy adaption to previous mounting holes.Many pressure cycles.to date.I'm quite pleased with it.
A
All good.
