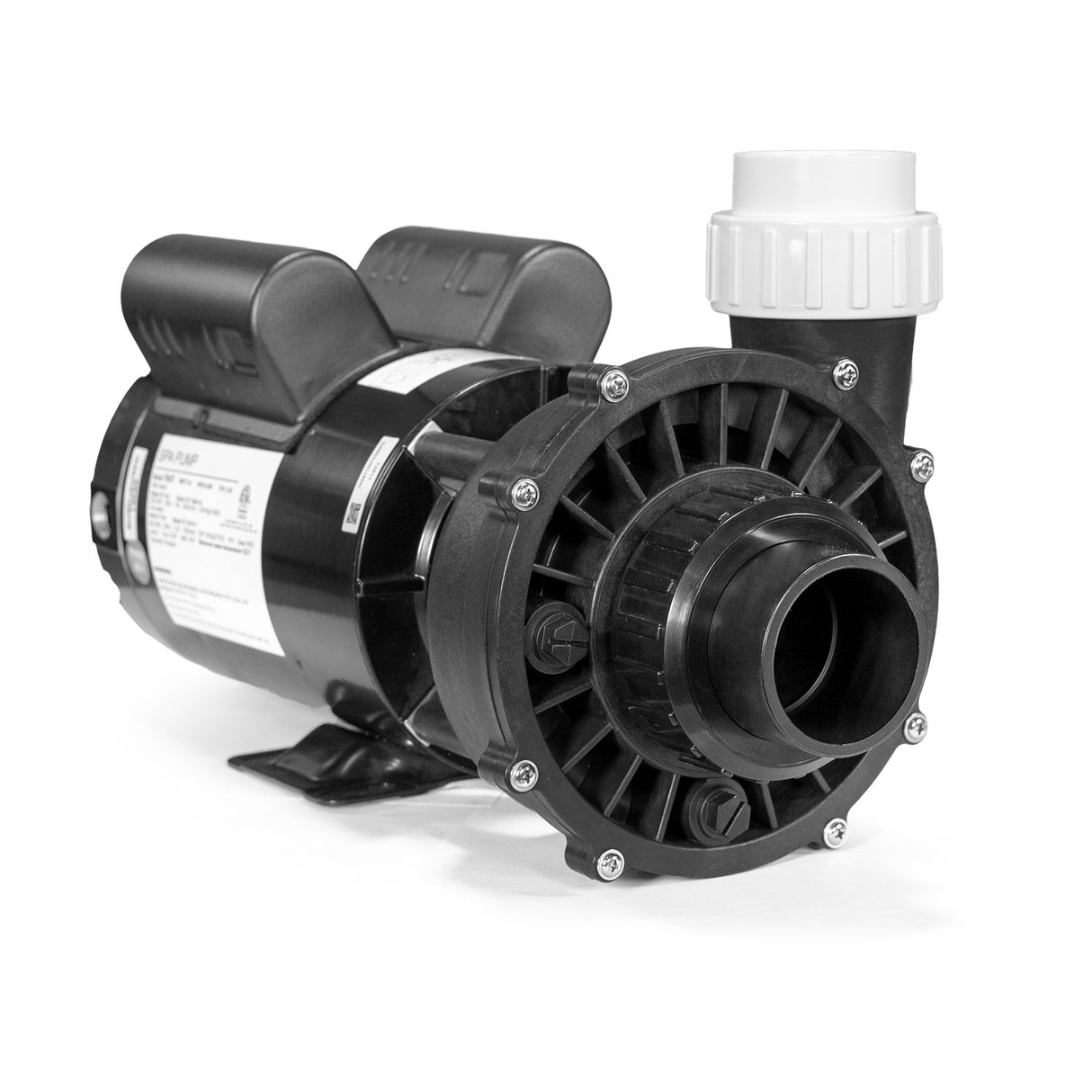

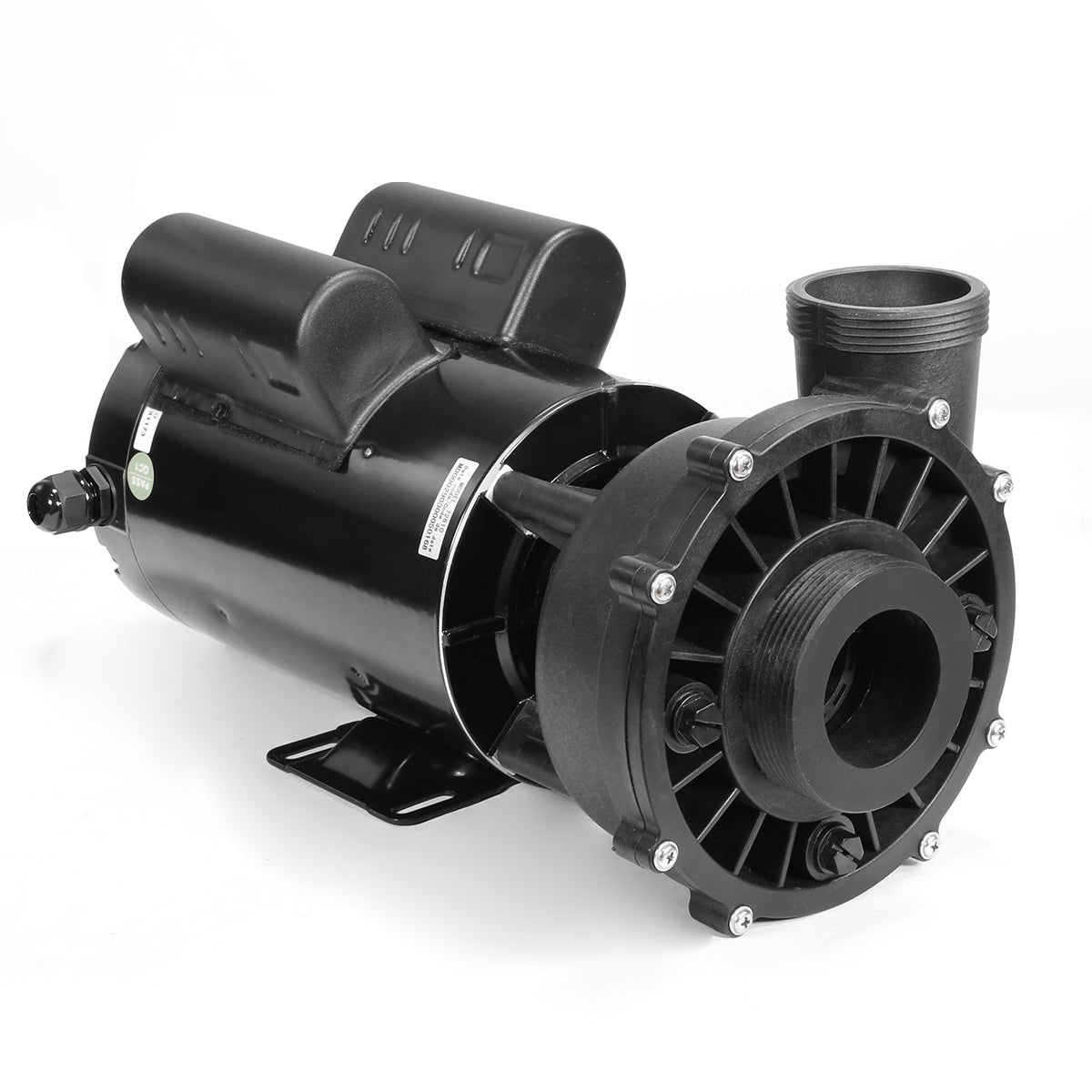

3.0HP Spa Pump 2-Speed Motor Hot Tub Pump 2" Discharge Intake 220V Circulating
SKU:
75027
1 customers are viewing right now
$20236
$30495
Unit price
/
Unavailable
3.0HP Spa Pump 2-Speed Motor Hot Tub Pump 2" Discharge Intake 220V Circulating is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Features
Features
- Wide Application - Spa Pump could run continuously for a long time: Being economical, quiet, and compact used in whirlpool bathtub or spa systems with single phase motor, thermal overload protector
- Large 2" Intake - Large 2" intake for better water flow, a split capacitor for minimum energy consumption, the highly versatile wet end can be rotated every 90
- Industrial Motor - Heavy Duty frame motor for added strength, cooler operating temperature, and longer motor life, spa pump has increased efficiency with its 2-Speed design
- Quiet and Longer Life Pump - Design with Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
Specifications
Specifications
- Type: Spa Pump
- Phase: Single
- Horsepower: 2.0
- Voltage: 230v
- Amps: 10 (High) / 1.2 (Low)
- RPM: 3450 (High) / 1150 (Low)
- Speed: 2
- Discharge Type: Side Discharge
- Inlet Internal Fitting: 2" NPT

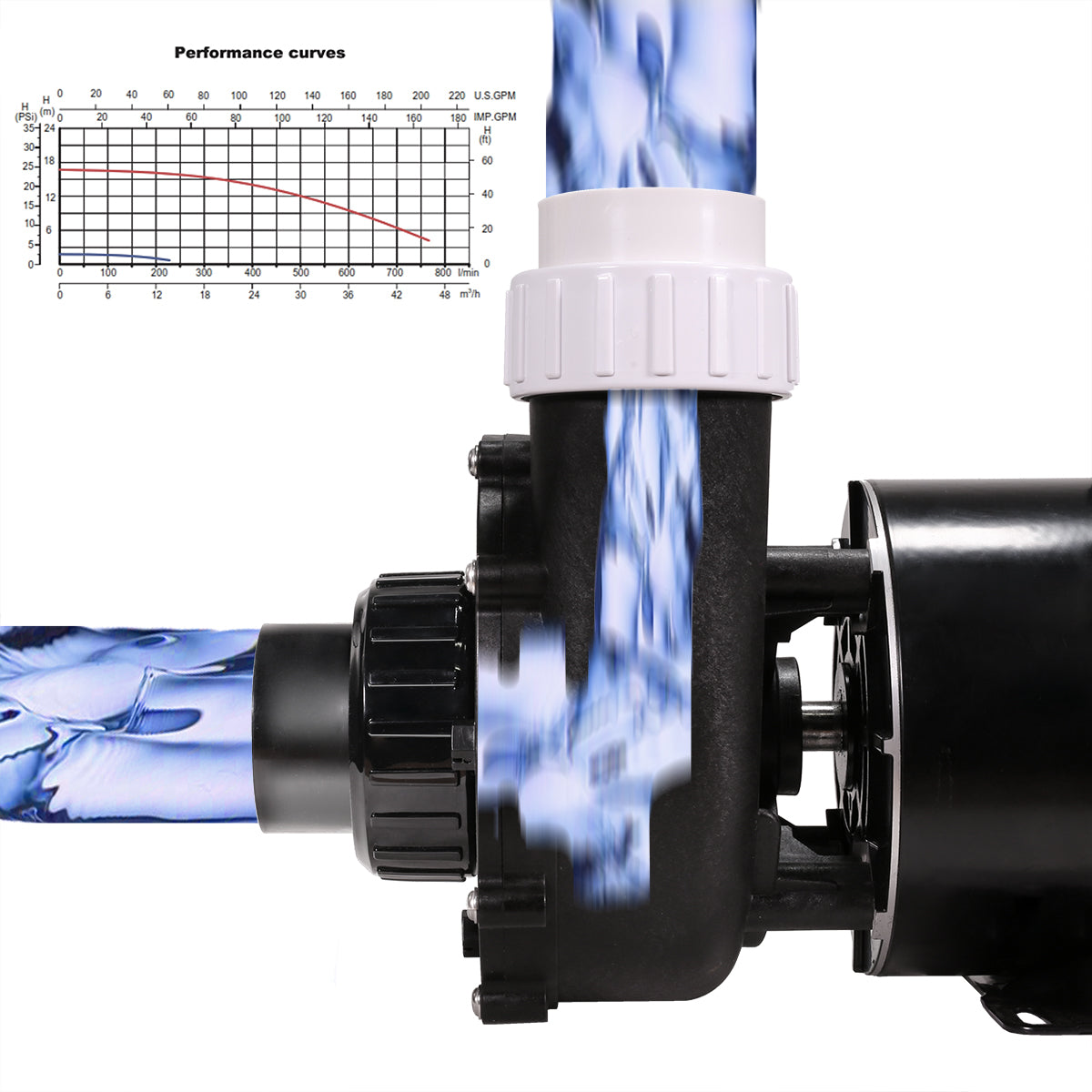

- Hmax: 56ft (High) / 6ft (Low)
- Qmax: 211 Gal/Min (High) / 65 Gal/Min (Low)
- Waterproof Level: IPX5
- Slip-On Fitting Included: Yes

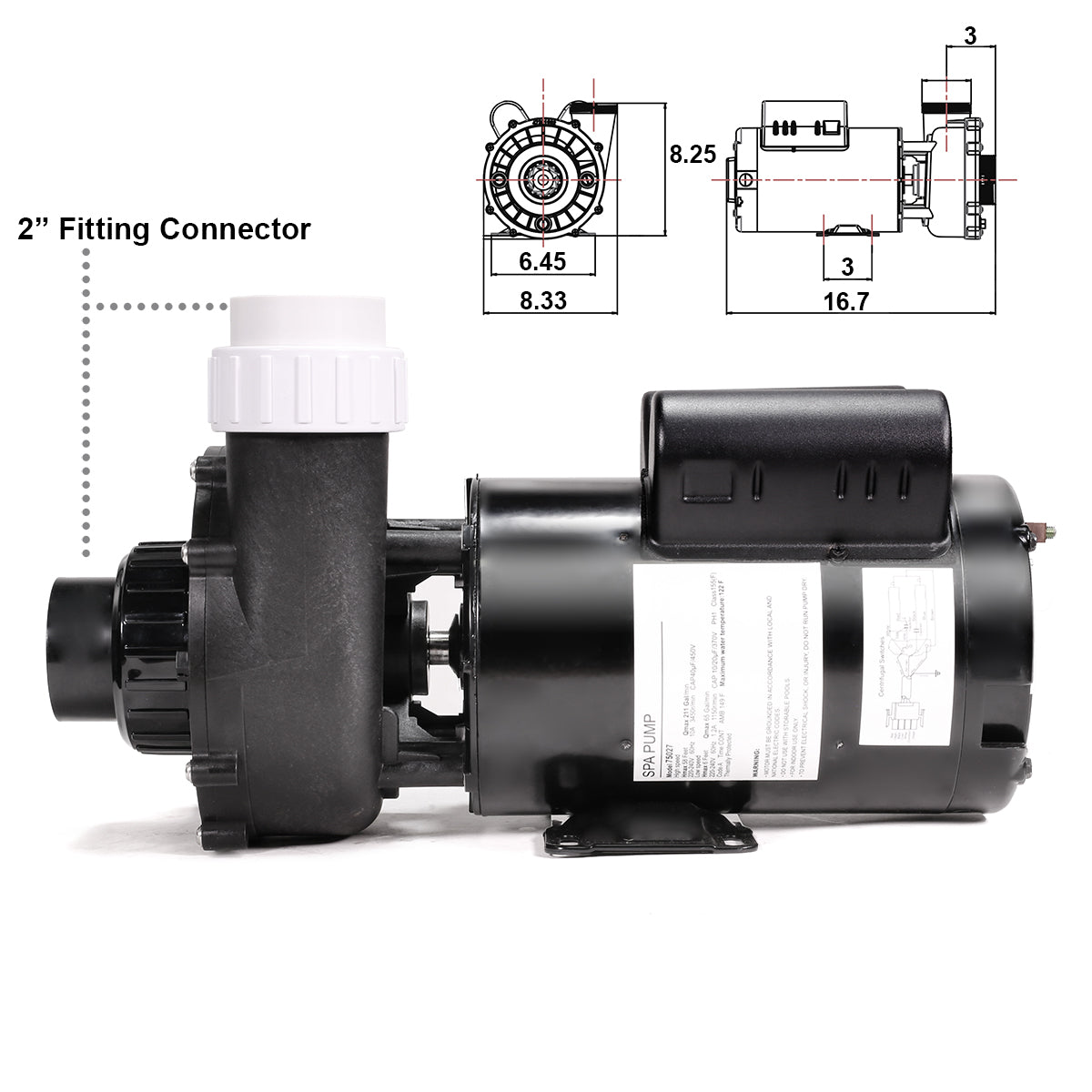

- Overall Dimension: 8-1/2"(W) x 16-1/2"(L) x 9"(H)
- Hardware Required: Yes
- Powercord Included: No
Product Content
Product Content
- Spa Pump
- Plumbing Fitting Set
- Manual
When installing, please consult qualified professional
2pc-Union Fitting included
